WHAT WE DO
Trigun offers you a choice of products that include Grid Connected Solar PV System to help you optimize all solar power projects with its basic yet revolutionary solar power solutions. Our Solar power products are designed keeping in mind the maximum utilization of the power while keeping a tight check on your investment returns. These products provide you with the best options to enhance the beauty as well as the utilization of all your solar power projects. What's more, our installation cost is minimal because we provide you with complete support and help from our professionals.
Our Solar Products range comprises a wide variety of products including Solar Power Trees, Grid Connected Solar PV Systems, Smart Solar Bench, Solar Water Heater, Solar Panels, and Solar Lights, Solar Air Heaters.
Made from high-quality steel and engineered to support a photovoltaic array, the Solar Power Tree creates a sense of vibrancy along with fulfilling your basic energy needs. It is durable, easy to install, needs little maintenance, and saves up to 95% of space for installing other products of the same capacity. It can be installed on any premises be it schools & colleges, temples, industries, residential areas, railway stations, airports, hotels and malls, smart city projects, party plots, and bus stops. It can fulfill the energy requirements for mobile charging, electric vehicle charging, weather alert, led lights, CCTV cameras, advertising displays, and WIFI. They come in 4 different models with specific specifications
- Model Number TES001
- Model Number TES002
- Model Number TES003
- Model Number TES004
Their General Specification Includes:
| Other Components | Mounting Structure |
| Power | 1.5 kW to 10 kW |
| Usage/Application | Commercial |
| Solar Panel | 5 to 10 |
Common Technical Specifications include:
|
Material |
Off Grid Smart Solar Tree |
On-Grid Smart Solar Tree |
|
Modules |
MNRE Certified, Modules Capacity -230 Watt To 380 Watt |
|
|
Inverter |
Off Grid / Hybrid Inverter |
On-Grid Inverter |
|
Inverter Capacity |
As Per Solar Tree Model, 1 KW – 15 KW (Standard Models) |
As Per Solar Tree Model 1 KW – 15 KW (Standard Models) |
|
Inverter Warranty |
3 Year Warranty |
5 Year Warranty |
|
Batteries |
Capacity -As Per Solar Tree Model, Warranty-2 Year |
- |

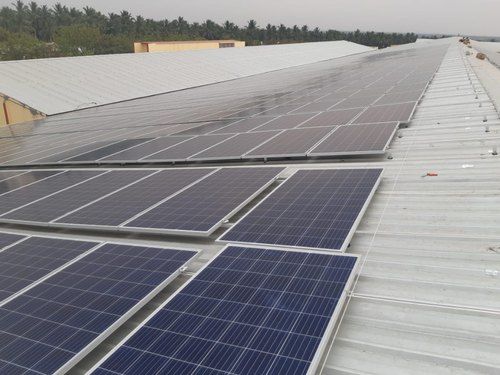

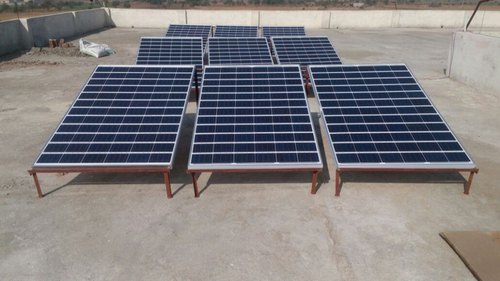

Our Grid Connected Solar PV Systems are based on the traditional method to harvest Solar Energy but come with modern advancements to maximize power generation. These are the photovoltaic panels or arrays that are connected to the utility grid through a power inverter unit that allows them to operate in parallel with the electric utility grid. These are best suited for commercial purposes. The minimum Order Quantity for this is 3 KW.
Some common specifications include:
| Usage/Application | Commercial |
| Capacity | 10kW |
| Type Of Plant | Grid Tie |
| Other Components | Mounting Structure |
| IP Rating | IP66 |
| Frame Material | Aluminum |

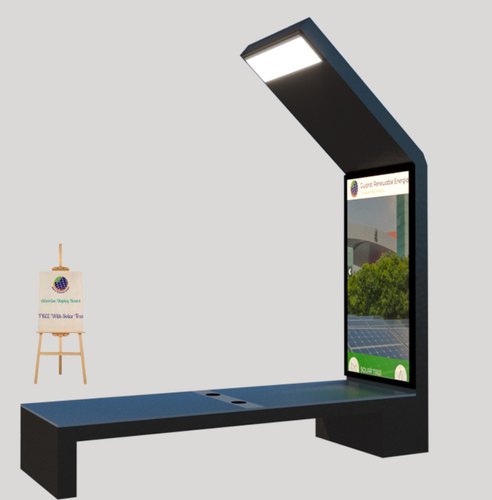

Our Smart Solar Benches are smart and environment-friendly upgradation to existing street furniture. It can be utilized for mobile charging, powering 14 watts Led lights, advertising displays, WIFI, and Bluetooth speakers and can be set up in municipalities, residential communities, universities and schools, private companies & business centers, Parks, libraries, and other public places. It can be made available in any color as per request.
Some Common Specifications include:
| PV Solar Module | 100 Wp to 500 Wp |
| LED Lights | As Per Customer Requirement |
| Application | Mobile Charging, LED lights, Advertise display, Wifi, Blue Tooth Speaker |
| Bench | Configurable by Request |
| Battery | Lifepo4 lithium |
| Material | Steel, Aluminum, wood |
Our Solar water heaters are similar to traditional ones that utilize readily available solar energy to heat water. This system works on the Thermo Siphon principle and is designed to provide hot water without consuming expensive electricity. It is an effective and environmental-friendly way to get hot water by reducing power consumption. The heater is provided with an extra thick inner tank having high-density puf insulations that make it more resistant and allows you to owe the green superior choice ensuring years of trouble-free hot water for you and your family.
Capacity Available: 100 LPD, 150 LPD, 200 LPD, 250 LPD, 300 LPD, 500 LPD: MANIFOLD / COMPAK

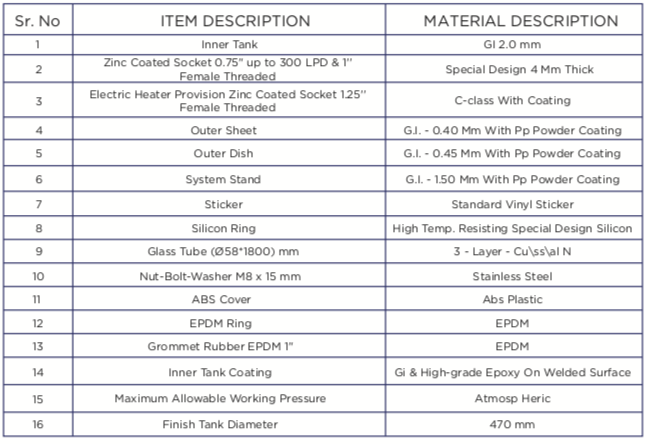

Some common and technical specifications include:
|
S.No. |
Item Description |
Material Description |
| 1. |
Inner Tank |
GI 2.0 mm |
| 2. |
Zinc Coated Socket 0.75" up to 300 LPD & 1'' Female Threaded |
Special Design 4 Mm Thick |
| 3. |
Electric Heater Provision Zinc Coated Socket 1.25'' Female Threaded |
C-class With Coating |
| 4. |
Outer Sheet |
G.I. - 0.40 Mm With Pp Powder Coating |
| 5. |
Outer Dish |
G.I. - 0.45 Mm With Pp Powder Coating |
| 6. |
System Stand |
G.I. - 1.50 Mm With Pp Powder Coating |
| 7. |
Sticker |
Standard Vinyl Sticker |
| 8. |
Silicon Ring |
High Temp. Resisting Special Design Silicon |
| 9 |
Glass Tube (Ø58*1800) mm |
3 - Layer - Cu\ss\al N |
| 10. |
Nut-Bolt-Washer M8 x 15 mm |
Stainless Steel |
| 11. |
ABS Cover |
Abs Plastic |
| 12. |
EPDM Ring |
EPDM |
| 13. |
Grommet Rubber EPDM 1" |
EPDM |
| 14. |
Inner Tank Coating |
Gi & High-grade Epoxy On Welded Surface |
| 15. |
Maximum Allowable Working Pressure |
Atmosp Heric |
| 16. |
Finish Tank Diameter |
470 mm |

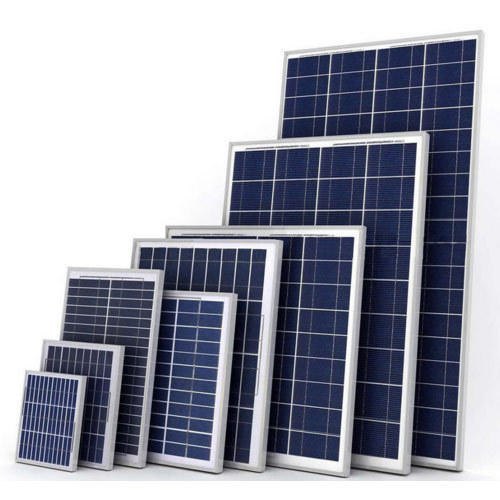

We offer Solar Panels of two different varieties that are Monocrystalline and Polycrystalline. Monocrystalline panels have higher wattages and efficiency values as compared to equally sized polycrystalline panels, however, both differ in their prices. Polycrystalline panels have lower costs but both are economically beneficial. Our panels come in a range from 300 watts to 380 watts along with 25 years of warranty.
We offer a wide variety of ranges in Solar and LED lights.
LED Lights variety includes:
|
Led panel light (ceiling) (Slim Panel & Surface Panel) |
4 watt to 22 watt |
2-year warranty
|
|
Street Light |
18 watt – 200 watt |
2-year warranty |
|
Flood light |
30 watt – 400 watt |
2-year warranty |
Solar Lights Variety includes:

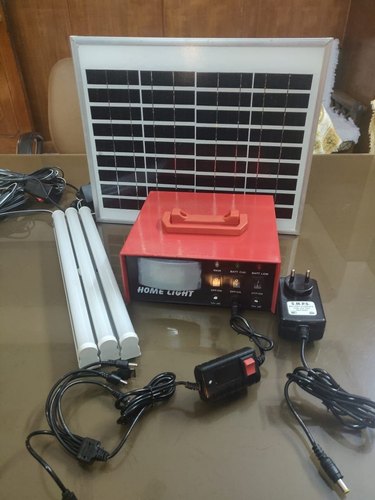

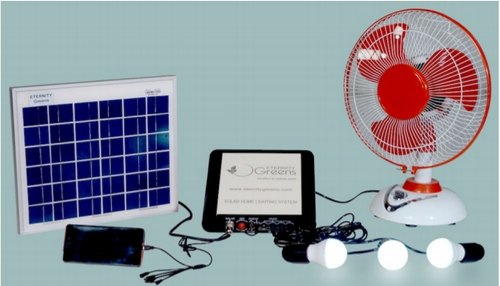

- Solar Home light system
- DC Luminary
- Solar Pillar Light
- All in one street light
- Semi-integrated solar street light
- Solar lantern
- Solar Led blinker
Our Solar Air Heating Systems are based on revolutionary technologies as they absorb thermal energy directly from sunlight to heat air. This heated air can easily be circulated through buildings and apartments to provide heat. These air heaters provide interior heat adjustments to complement conventional climate control systems while using green and clean energy. These have the capacity to heat the air up to 80 degrees Celsius. These can be used in industrial areas, houses, and any other place where hot air is required. These are easy to install and are customizable according to your needs.
